High Flux Hollow Fiber Dialyzer Series

membrane.

Clinical Features & Performance :

• Improved Patient Prognosis : Significantly lowers all-cause mortality risk in long-term dialysis patients and enhances survival rates for patients with diabetic nephropathy or serum albumin levels <= 4 g/dL.
• Middle-Molecule Clearance : High clearance performance for middle-sized uremic toxins to optimize overall treatment outcomes.
• Microwave Fiber Design : Expands the effective membrane surface area for enhanced solute exchange.
• High Biocompatibility & Safety : Polysulfone synthetic membrane ensures robust endotoxin retention and excellent patient tolerance.

Technical Specifications :

• Membrane Material : Polysulfone (PSU).
• Components : Polycarbonate housing, polyurethane potting compound, medical silicone rubber header gasket.
• Fiber Dimensions : Wall thickness 40 µm / Inner diameter 200 µm.
• Sterilization & Packaging : Radiation sterilization, 24 pcs/carton.

Model Range (Performance details for QB = 300 mL/min / QD = 500 mL/min) :

• HF10 : Surface Area 1.0 m² | Blood Volume 55 mL | Ultrafiltration Coeff. 34 mL/h/mmHg
• HF12 : Surface Area 1.2 m² | Blood Volume 63 mL | Ultrafiltration Coeff. 42 mL/h/mmHg
• HF14 : Surface Area 1.4 m² | Blood Volume 74 mL | Ultrafiltration Coeff. 49 mL/h/mmHg
• HF15 : Surface Area 1.5 m² | Blood Volume 75 mL | Ultrafiltration Coeff. 52 mL/h/mmHg

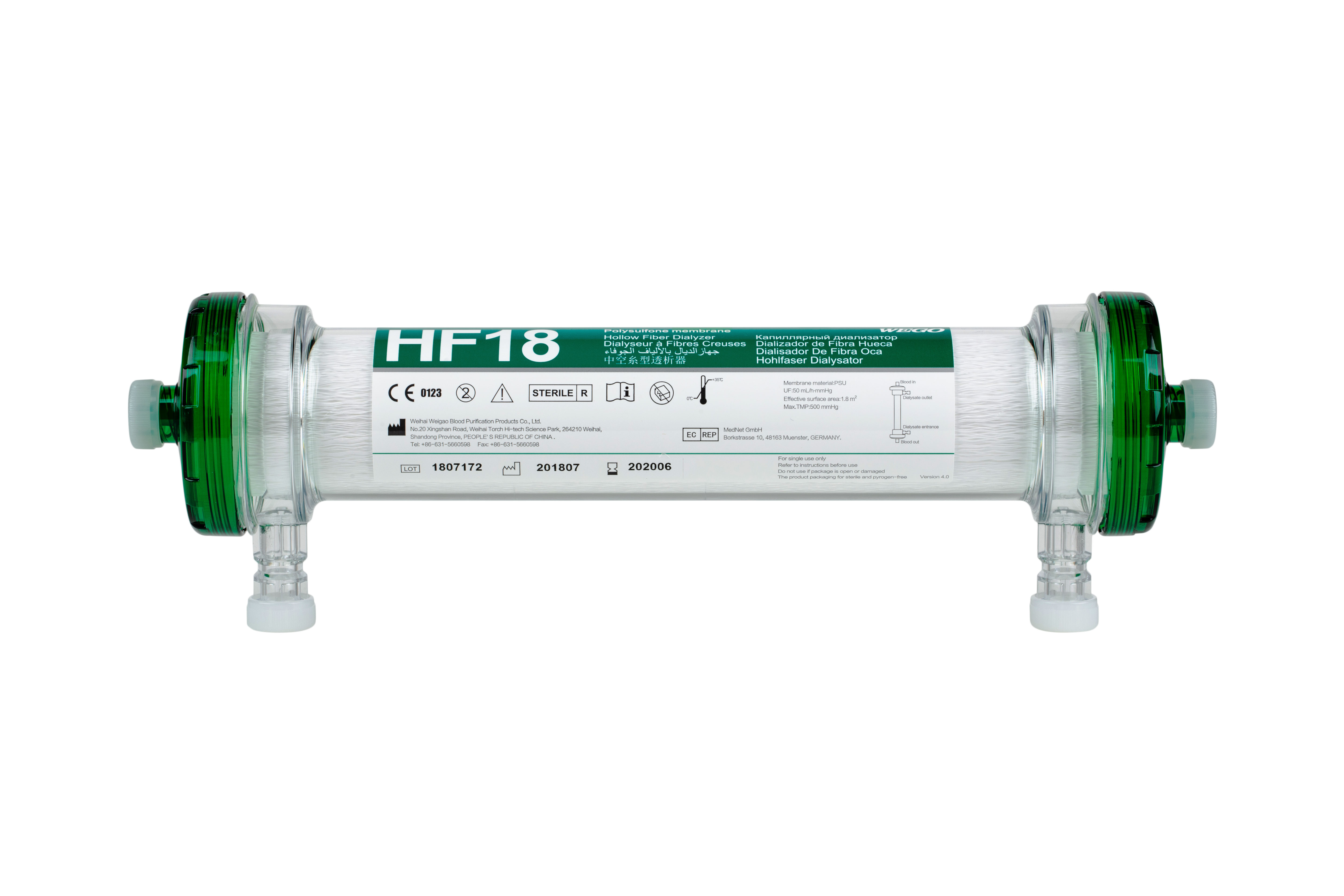

• HF18 : Surface Area 1.8 m² | Blood Volume 95 mL | Ultrafiltration Coeff. 63 mL/h/mmHg
• HF19 : Surface Area 1.9 m² | Blood Volume 92 mL | Ultrafiltration Coeff. 67 mL/h/mmHg

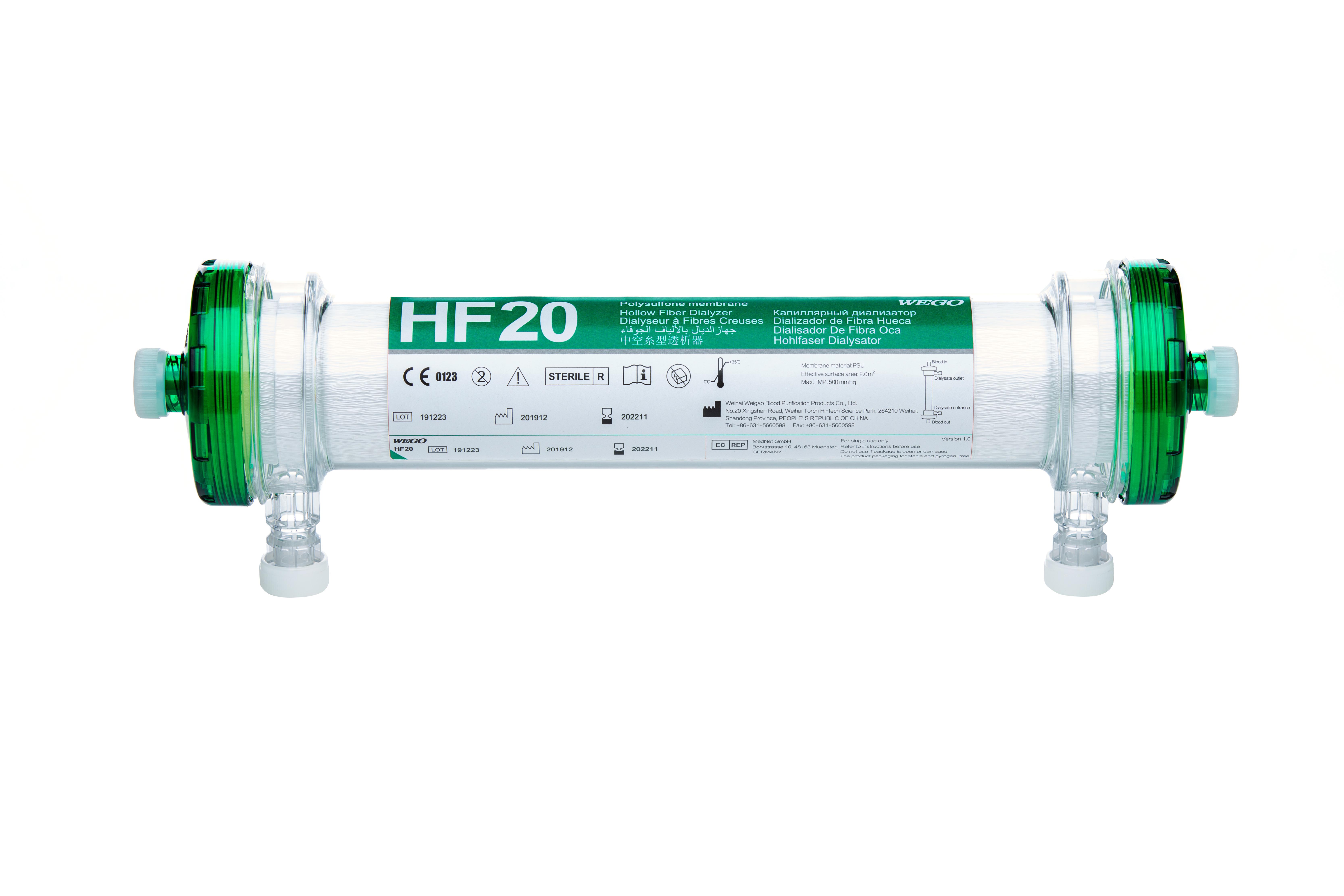

• HF20 : Surface Area 2.0 m² | Blood Volume 113 mL | Ultrafiltration Coeff. 69 mL/h/mmHg
• HF21 : Surface Area 2.1 m² | Blood Volume 116 mL | Ultrafiltration Coeff. 73 mL/h/mmHg

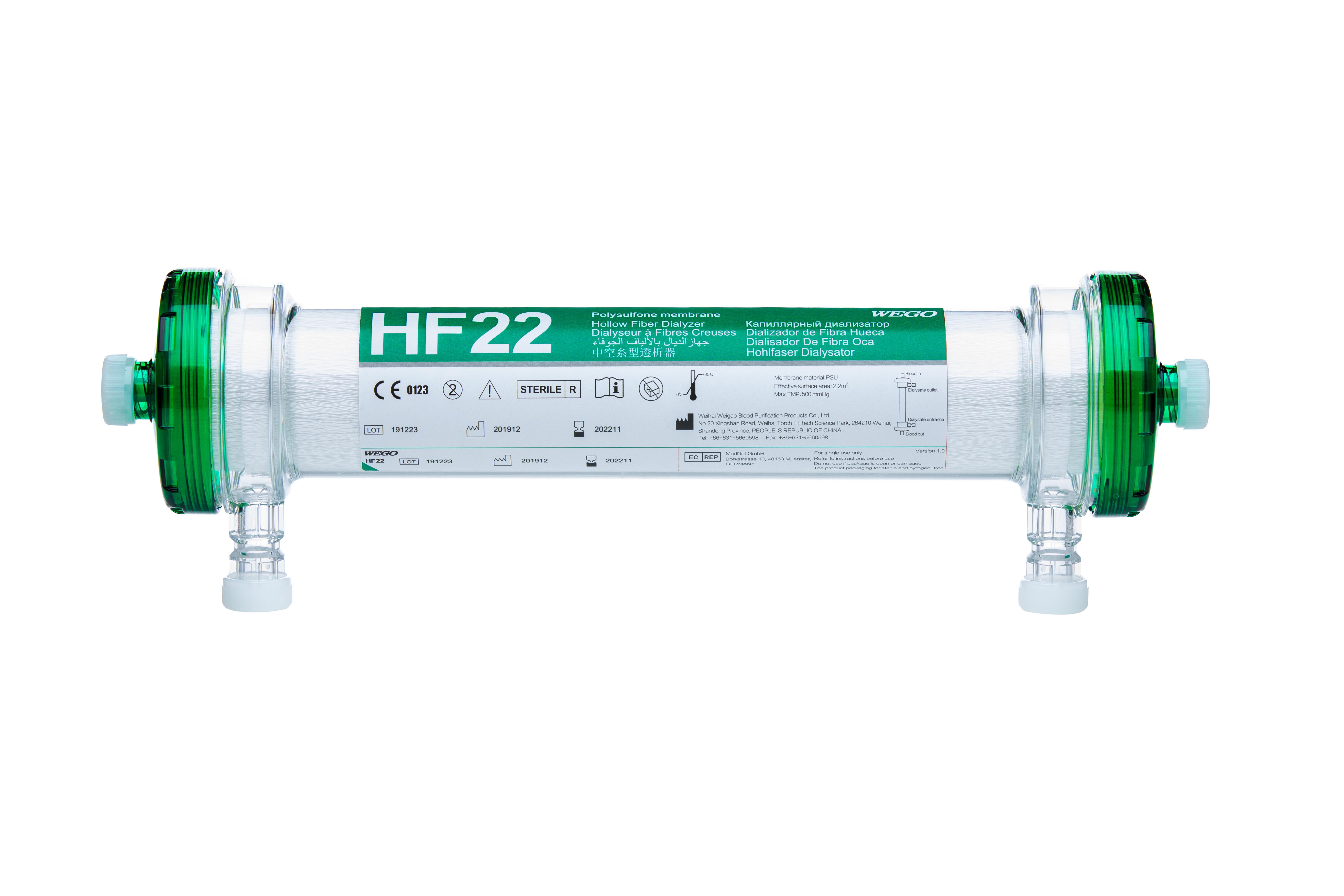

• HF22 : Surface Area 2.2 m² | Blood Volume 119 mL | Ultrafiltration Coeff. 78 mL/h/mmHg
• HF23 : Surface Area 2.3 m² | Blood Volume 121 mL | Ultrafiltration Coeff. 84 mL/h/mmHg
